Brand:
SkyTronics LED, Inc.Item NO.:
C-Smart P6.67Payment:
Wire Transfer/ ChecksProduct Origin:
Shenzhen,ChinaColor:
full color RGBShipping Port:
Glendale CaliforniaLead Time：
3 daysWarranty:
2 yearsAdvantages:
1. Fullly modular design without cabinet
2. Higher brightness

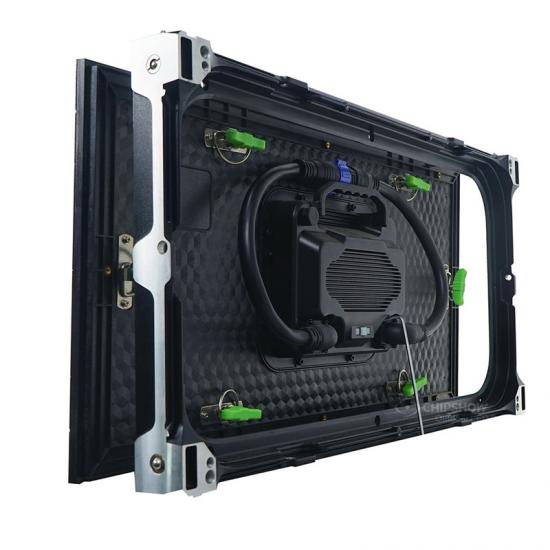

3. Front and rear maintenance
4. Light weight, fast and easy installation
5. Higher resolution for better image quality
6. IP65 waterproof
7. Apply for monument signs, led message center, pole signs and pylon signs etc.
Specification:
Pixel Pitch
6.67mm
size
320mm*640mm/12inch*24inch
Resolution
48*96pixels
Brightness
7000nits
Refresh rate
1920Hz
Working Voltage
110V-220V
Power
130W
LED type
SMD2727
Weight
6.5KG/14LBS
IP grade
IP65 Front & Rear

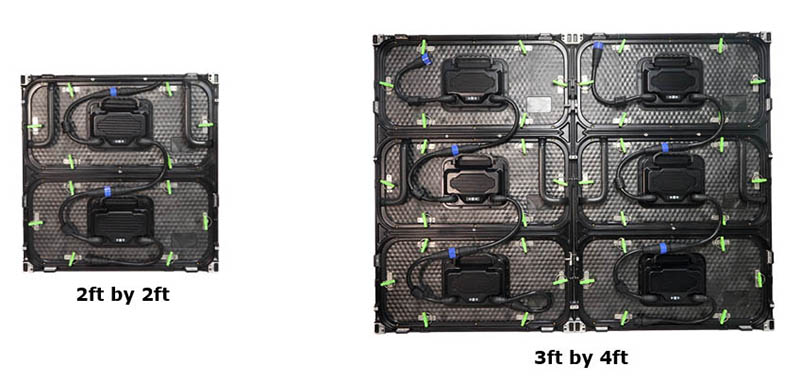

Different Layouts for different sizes
| Popular sizes in feet | Popular sizes in meter | Quantity of panels needed | Total power references |
| 2ft (H) x 4ft (W) | 0.64meters (H) x 1.28meters (W) | 2 x 2=4pcs | 520 W |
| 2ft (H) x 6ft (W) | 0.64meters (H) x 1.92meters (W) | 2 x 3=6pcs | 780 W |
| 3ft (H) x 6ft (W) | 0.96meters (H) x 1.92meters (W) | 3 x 3=9pcs | 1,170 W |
| 3ft (H) x 8ft (W) | 0.96meters (H) x 2.56meters (W) | 3 x 4=12pcs | 1,560 W |
| 4ft (H) x 8ft (W) | 1.28meters (H) x 2.56meters (W) | 4 x 4=16pcs | 2,080 W |
| 5ft (H) x 10ft (W) | 1.60meters (H) x 3.20meters (W) | 5 x 5=25pcs | 3,250 W |
| 6ft (H) x 10ft (W) | 1.92meters (H) x 3.20meters (W) | 6 x 5=30pcs | 3,900 W |
| 6ft (H) x 12ft (W) | 1.92meters (H) x 3.84meters (W) | 6 x 6=36pcs | 4,680 W |

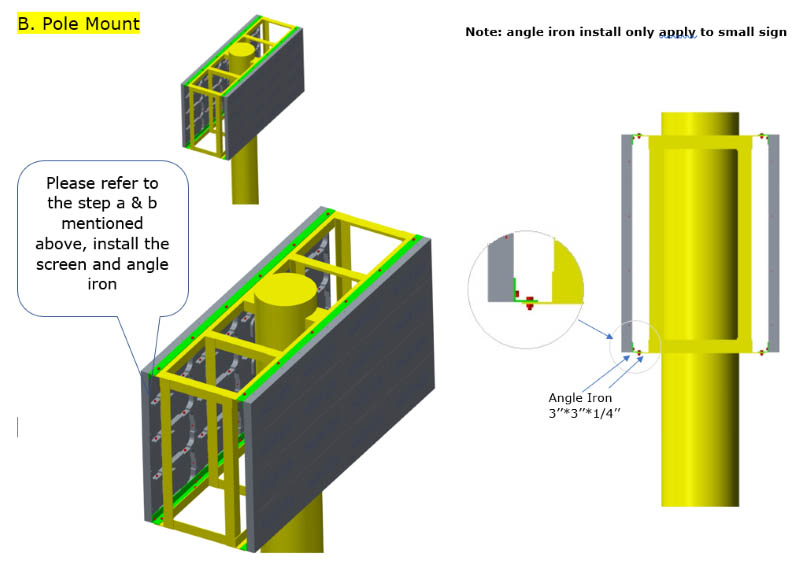

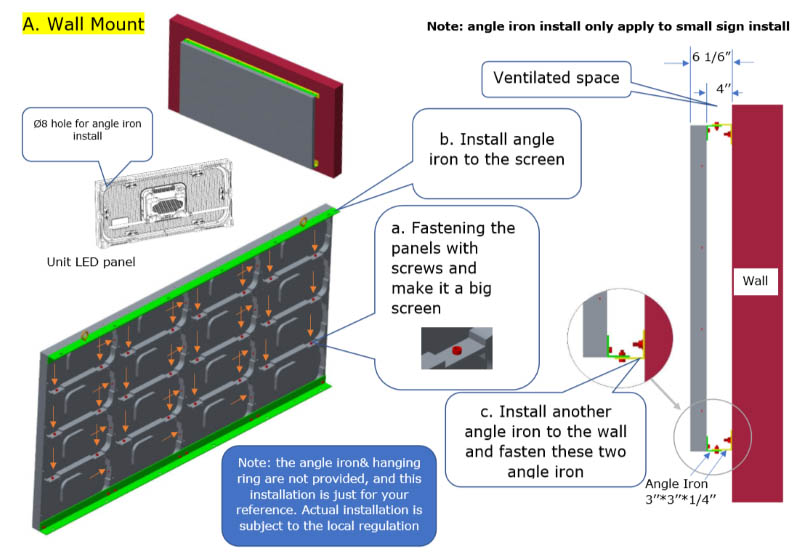

Installation Reference:
FAQ
1. Does it need special skill to install?
No, it is smart Led signs ready to use and it comes with all the installation kits needed, excepts the angle iron.
2. What can it display?
This LED video signs can display texts, images, animation, scrolling texts, videos etc.
